067AL25-20BA1F DIC

Name: 067AL25-20BA1F DIC
Brand: Dichtomatik
SKU: 067AL25-20BA1F DIC
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Dichtomatik

Manufacturer part number:

067AL25-20BA1F

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

DICHTOMATIK

Description

The wide variety and versatility of our Piston Accumulators allows their use in over 90% of all potential applications. Proven durability and performance deliver freedom from potential bladder failure. From volumes of a few cubic inches to hundreds of gallons and up to 20000 psi MAWP (1380 bar), the piston type hydro-pneumatic accumulator can meet the diverse needs of industry with standard or custom designs, a comprehensive selection of gas and fluid connections, and a wide range of materials, seal types, and configurations.

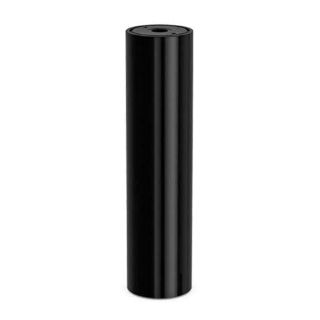

DICHTOMATIK Piston Accumulator, Series: AL Series, 2.5 gal Fluid Volume, 599 cu-in Gas, 6-3/4 in OD Dia, 31-1/8 in Height, 2500 psi, Steel

Application

Construction, Energy, Fluid Power, Agriculture, Automotive Applications, Suspension, Oil and Gas Industries

Standards

ASME/NB | CE/PED | SELO

Features

Customizable designs
Rapid production of prototypes
The engineering process is optimized to meet the specific requirements of the given application
High-quality seal material with low permeation
Fully automatic assembly procedure
Possibility of a high piston speed
Small hysteresis
High durability and low maintenance
Compact design
Both heads welded piston accumulator

Includes

Butyl Seal

Specifications

Diameter:	6-3/4 in OD
Fluid Volume:	2.5 gal
Gas Volume:	599 cu-in
Height:	31-1/8 in
Material:	Steel
Pressure Rating:	2500 psi
Series:	AL Series
