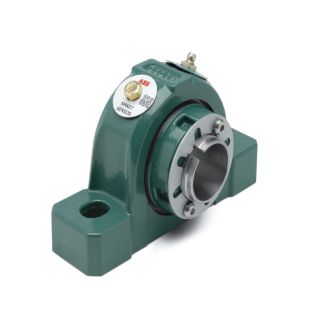

Actual Product May Vary From Image

069468 DOD

Name: 069468 DOD
Brand: Dodge
SKU: 069468 DOD
Price: 622.47 USD
Availability: OutOfStock

P2B-IP-203L

Manufacturer: Dodge

Manufacturer part number: 069468

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$622.47

Qty:

Product Details

Base to Center Height:	2.5000
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	6.9400
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	6.5600
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	3.0300
Bore Length (Unit):	INCH
Dynamic Load Capacity:	27000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	4500
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	2.1875
Shaft Diameter (Unit):	INCH
Static Load Capacity:	29000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-200,TS-300
