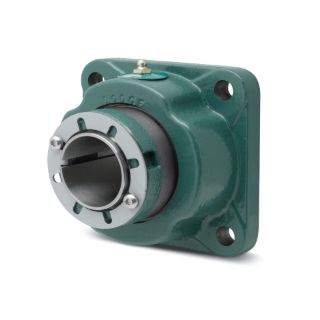

Actual Product May Vary From Image

069703 DOD

Name: 069703 DOD
Brand: Dodge
SKU: 069703 DOD
Price: 547.53 USD
Availability: OutOfStock

F4S-IP-115R

Manufacturer: Dodge

Manufacturer part number: 069703

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$547.53

Qty:

Product Details

Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Circle:	5.7500
Bolt Circle (Unit):	INCH
Bolt Diameter:	0.5000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	4.0600
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	4.0600
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	4.0600
Bolt Width (Unit):	INCH
Bore Length:	2.8600
Bore Length (Unit):	INCH
Dynamic Load Capacity:	22000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Flange
Insert Material:	Steel
Insert Outer Diameter:	90.0000
Insert Outer Diameter (Unit):	MILLIMETER
Lubrication:	Grease
Maximum Speed:	3520
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	1.9375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	24000
Static Load Capacity (Unit):	POUND_FORCE
