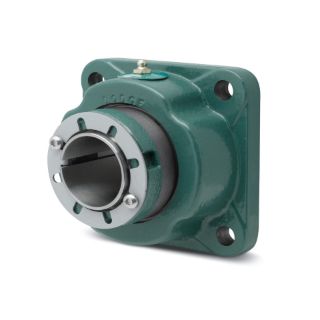

069780 DOD

Name: 069780 DOD
Brand: Dodge
SKU: 069780 DOD
Price: 400.71 USD
Availability: OutOfStock

F4S-IP-106LE

Manufacturer: Dodge

Manufacturer part number: 069780

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$400.71

Qty:

Product Details

Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Circle:	5.0000
Bolt Circle (Unit):	INCH
Bolt Diameter:	0.5000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	3.5300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	3.5300
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	3.5300
Bolt Width (Unit):	INCH
Bore Length:	2.6300
Bore Length (Unit):	INCH
Dynamic Load Capacity:	20800
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Flange
Insert Material:	Steel
Insert Outer Diameter:	80.0000
Insert Outer Diameter (Unit):	MILLIMETER
Lubrication:	Grease
Maximum Speed:	6000
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	1.3750
Shaft Diameter (Unit):	INCH
Static Load Capacity:	21000
Static Load Capacity (Unit):	POUND_FORCE
