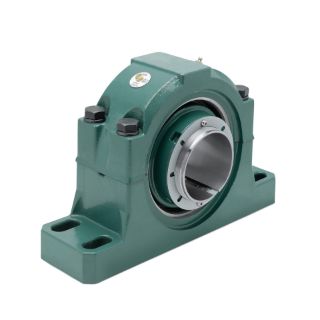

Actual Product May Vary From Image

070059 DOD

Name: 070059 DOD
Brand: Dodge
SKU: 070059 DOD
Price: 1,136.35 USD
Availability: OutOfStock

P4B517-ISAF-215R

Manufacturer: Dodge

Manufacturer part number: 070059

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,136.35

Qty:

Product Details

Base to Center Height:	3.7500
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	11.0000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	9.8800
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.1300
Bolt Width (Unit):	INCH
Bore Length:	3.5000
Bore Length (Unit):	INCH
Dynamic Load Capacity:	41500
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Dimensional Standard:	SAF
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2250
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	2.9375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	53000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-250
