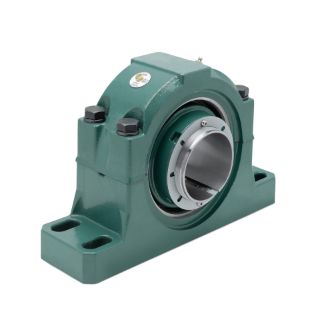

Actual Product May Vary From Image

070060 DOD

Name: 070060 DOD
Brand: Dodge
SKU: 070060 DOD
Price: 1,717.53 USD
Availability: OutOfStock

P4B520-ISAF-307R

Manufacturer: Dodge

Manufacturer part number: 070060

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,717.53

Qty:

Product Details

Base to Center Height:	4.5000
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.7500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	13.1300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	11.6300
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.3800
Bolt Width (Unit):	INCH
Bore Length:	4.1700
Bore Length (Unit):	INCH
Dynamic Load Capacity:	65500
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Dimensional Standard:	SAF
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1825
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	3.4375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	81500
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-350
