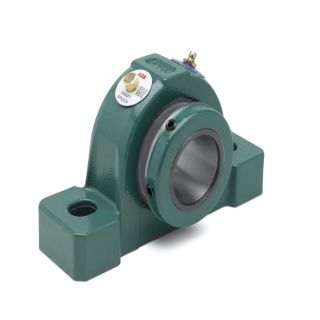

Actual Product May Vary From Image

070313 DOD

Name: 070313 DOD
Brand: Dodge
SKU: 070313 DOD
Price: 1,985.88 USD
Availability: OutOfStock

P2B-S2-315RE

Manufacturer: Dodge

Manufacturer part number: 070313

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,985.88

Qty:

Product Details

Base to Center Height:	4.2500
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	1.0000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	12.8800
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	10.6300
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	4.4700
Bore Length (Unit):	INCH
Dynamic Load Capacity:	83000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1075
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	3.9375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	104000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-350,TS-500
