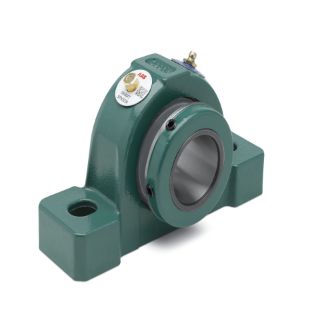

Actual Product May Vary From Image

070325 DOD

Name: 070325 DOD
Brand: Dodge
SKU: 070325 DOD
Price: 503.53 USD
Availability: OutOfStock

P2B-S2-200L

Manufacturer: Dodge

Manufacturer part number: 070325

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$503.53

Qty:

Product Details

Base to Center Height:	2.2500
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	6.4400
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	6.0600
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2.8400
Bore Length (Unit):	INCH
Dynamic Load Capacity:	22000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	3180
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	2.0000
Shaft Diameter (Unit):	INCH
Static Load Capacity:	24000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-200,TS-300
