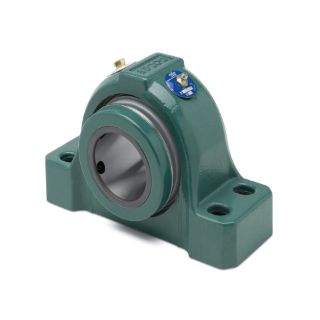

Actual Product May Vary From Image

070377 DOD

Name: 070377 DOD
Brand: Dodge
SKU: 070377 DOD
Price: 4,315.29 USD
Availability: OutOfStock

P4B-S2-415R

Manufacturer: Dodge

Manufacturer part number: 070377

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$4,315.29

Qty:

Product Details

Base to Center Height:	5.5000
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.8750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	16.0000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	15.0000
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.7500
Bolt Width (Unit):	INCH
Bore Length:	6.9100
Bore Length (Unit):	INCH
Dynamic Load Capacity:	146000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	870
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	4.9375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	196000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-400
