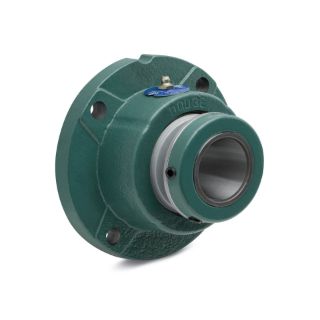

Actual Product May Vary From Image

070444 DOD

Name: 070444 DOD
Brand: Dodge
SKU: 070444 DOD
Price: 529.41 USD
Availability: OutOfStock

F4R-S2-203R

Manufacturer: Dodge

Manufacturer part number: 070444

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$529.41

Qty:

Product Details

Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Circle:	6.3800
Bolt Circle (Unit):	INCH
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	4.5000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	4.5000
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	4.5000
Bolt Width (Unit):	INCH
Bore Length:	2.9400
Bore Length (Unit):	INCH
Dynamic Load Capacity:	27000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Flange
Insert Material:	Steel
Insert Outer Diameter:	100.0000
Insert Outer Diameter (Unit):	MILLIMETER
Lubrication:	Grease
Maximum Speed:	1950
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	2.1875
Shaft Diameter (Unit):	INCH
Static Load Capacity:	29000
Static Load Capacity (Unit):	POUND_FORCE
