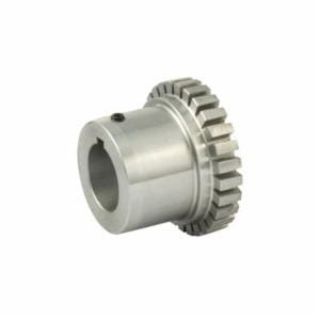

Actual Product May Vary From Image

0704638 FAL

Name: 0704638 FAL
Brand: Rexnord
SKU: 0704638 FAL
Price: 206.92 USD
Availability: OutOfStock

FALK® Steelflex® 0704638 Stock Bore Grid Coupling Hub, 1070T Coupling, 1-1/2 in Dia Bore, 2.62 in Length Through Bore, 3.44 in Dia Hub, Steel

Manufacturer: Rexnord

Manufacturer part number: 0704638

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$206.92

Qty:

Product Details

Brand Name

FALK®

Type

Stock Bore

Description

Stock Hubs for T10:T20 Series-Close Coupled Double-Flexing Couplings. The Steelflex® T-Hub design is the common hub used in T10 and T20 close coupled couplings as well as other configurations. Hubs are available in RSB-Rough Stock Bore (usually solid hub) for boring by others, stock bores and custom bores.

FALK® Steelflex® Grid Coupling Hub, Stock Bore, 1070T Coupling, 1-1/2 in Bore Dia, 3.44 in Hub Dia, 3 in Hub Length, 3/8 x 3/16 in Keyway, 4125/5500 rpm Maximum, 2.62 in Length Through Bore, Steel

Application

For FALK® Steelflex® type T10/T20 close coupled grid couplings

Specifications

Bore Diameter:	1-1/2 in
Coupling Size:	1070T
Hub Diameter:	3.44 in
Hub Length:	3 in
Keyway Size:	3/8 x 3/16 in
Length Through Bore:	2.62 in
Material:	Steel
Maximum Speed:	4125/5500 rpm
