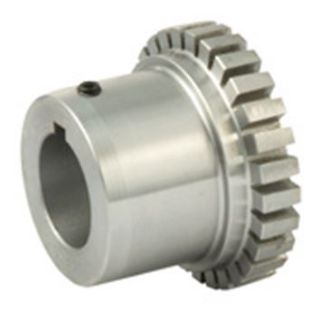

Actual Product May Vary From Image

0705103 FAL

Name: 0705103 FAL
Brand: Rexnord
SKU: 0705103 FAL
Availability: OutOfStock

Coupling Size: 1060; Coupling Type: Grid; Hub Bore Fit (Hub): Clearance; Hub Straight Bore Diameter (Hub): 1.8125 in; Number of Keyways (Hub): 1; Number of Setscrews (Hub): 1; Hub Style (Hub): Standard; Hub Setscrew Axial Location (Hub): 2.06 in; Hub Leng

Manufacturer: Rexnord

Manufacturer part number: 0705103

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Falk Steelflex®

Description

The Steelflex T-Hub design is the common hub used in T10 and T20 close coupled couplings as well as other configurations. Hubs are available in RSB-Rough Stock Bore (usually solid hub) for boring by others, stock bores and custom bores.

Specifications

Coupling Size:	1060
Coupling Type:	Grid
Hub Barrel Outside Diameter Hub:	3.000 in
Hub Bore Fit Hub:	Clearance
Hub Length thru Bore:	2.50 in
Hub Material Hub:	Steel
Hub Setscrew Axial Location Hub:	2.06 in
Hub Straight Bore Diameter Hub Nom:	1.8125 in
Hub Style Hub:	Standard
Hub Type Hub:	T-Hub
Keyway Depth Hub:	0.2500 in
Keyway Fit Hub:	Commercial
Keyway Width Hub:	0.5000 in
Model:	1060T
Number of Keyways Hub:	1
Number of Setscrews Hub:	1
