071232 DOD

Name: 071232 DOD
Brand: Dodge
SKU: 071232 DOD
Price: 2,113.95 USD
Availability: OutOfStock

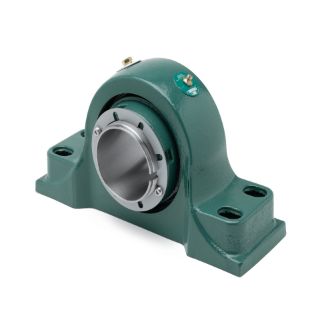

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

071232

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$2,113.95 / EA

Description

Base to Center Height:	4.2500
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.7500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	12.7500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	12.2500
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.2500
Bolt Width (Unit):	INCH
Bore Length:	4.7000
Bore Length (Unit):	INCH
Dynamic Load Capacity:	83000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	Type E
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1530
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	3.9375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	104000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	TS-500
