071291 DOD

Name: 071291 DOD
Brand: Dodge
SKU: 071291 DOD
Price: 477.40 USD
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

071291

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$477.40 / EA

Description

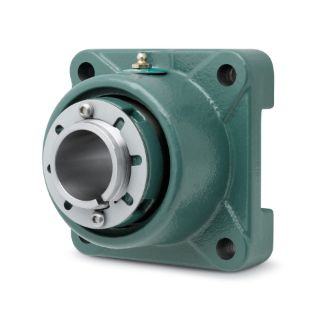

Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Circle:	5.8300
Bolt Circle (Unit):	INCH
Bolt Diameter:	0.5000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	4.1300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	4.1300
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	4.1300
Bolt Width (Unit):	INCH
Bore Length:	2.8100
Bore Length (Unit):	INCH
Dynamic Load Capacity:	20800
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	Type E
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Flange
Insert Material:	Steel
Insert Outer Diameter:	85.0000
Insert Outer Diameter (Unit):	MILLIMETER
Lubrication:	Grease
Maximum Speed:	3725
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	1.6250
Shaft Diameter (Unit):	INCH
Static Load Capacity:	22000
Static Load Capacity (Unit):	POUND_FORCE
