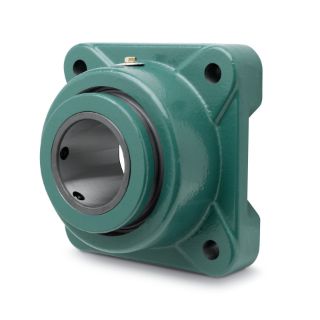

Actual Product May Vary From Image

071488 DOD

Name: 071488 DOD
Brand: Dodge
SKU: 071488 DOD
Price: 524.71 USD
Availability: OutOfStock

EF4B-S2-207RE

Manufacturer: Dodge

Manufacturer part number: 071488

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$524.71

Qty:

Product Details

Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Circle:	7.6000
Bolt Circle (Unit):	INCH
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	5.3700
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	5.3700
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	5.3700
Bolt Width (Unit):	INCH
Bore Length:	3.2000
Bore Length (Unit):	INCH
Dynamic Load Capacity:	39000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	Type E
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Flange
Insert Material:	Steel
Insert Outer Diameter:	120.0000
Insert Outer Diameter (Unit):	MILLIMETER
Lubrication:	Grease
Maximum Speed:	1740
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	2.4375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	47500
Static Load Capacity (Unit):	POUND_FORCE
