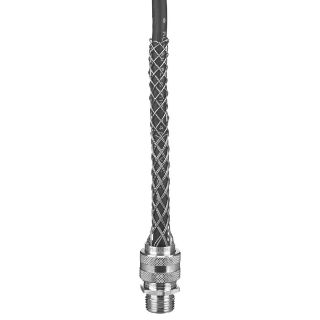

Picture of 07401030 HWD
Actual Product May Vary From Image

07401030 HWD

Wiring Device-Kellems 07401030 Deluxe Form 5 Liquidtight Standard Straight Cord Grip With Stainless Steel Mesh, 1-1/2 in Trade, 1 to 1-1/8 in Cable Openings, Aluminum
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: 07401030
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$196.84

Product Details

Brand Name

Wiring Device-Kellems

Type

Form 5 Liquidtight Standard Duty Strain Relief

Description

Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.
Wiring Device-Kellems Cord Grip, Deluxe Form 5 Liquidtight Standard Straight, 1-1/2 in, Cable Openings: 1 to 1-1/8 in, Jacketed Cable, MNPT, 5-3/4 in Mesh Length, Aluminum, Metallic, -30 to 225 deg F, 2.31 in Dia x 2.44 in L

Application

For hazardous locations, wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors, machine tools, use in wet locations when used with a listed nylon washer between box and fitting

Standards

CSA Certified | RoHS Compliant | UL 898D | UL 899D

Features

  • Helps to prevent cable pull-outs
  • Controls cable arc of bend
  • Provides a liquidtight seal
  • Corrosion resistant stainless steel mesh with aluminum collar
  • An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
  • Straight aluminum connector stainless grip
  • For insulated cables
  • 1.969 to 2.016 in recommended knockout hole
  • 1.38 in Dia throat
  • Multi-weave grip gives cable arc of bend control minimizing cable damage and extending cable life
  • Endless weave provides easy cable/flexible conduit installation
  • Stainless steel strand, aluminum nut and neoprene bushing

Specifications

Cable Openings:1 to 1-1/8 in
Cable Type:Jacketed
Color:Metallic
Connection Type:MNPT
Country of Origin:CN
Dimensions:2.31 in Dia x 2.44 in L
Material:Aluminum
Mesh Length:5-3/4 in
Number of Conductors:1
Temperature Rating:-30 to 225 deg F
Trade Size:1-1/2 in
