Actual Product May Vary From Image

074011248 HWD

Name: 074011248 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 074011248 HWD
Price: 77.33 USD
Availability: InStock

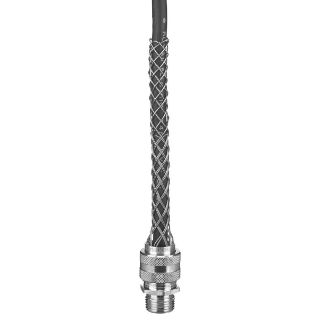

Wiring Device-Kellems 074011248 Deluxe Form 3 Liquidtight Standard Straight Cord Grip With Stainless Steel Mesh, 1/2 in Trade, 3/4 to 7/8 in Cable Openings, Aluminum

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 074011248

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
6	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$77.33

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Form 3 Liquidtight Standard Duty Strain Relief

Description

Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.

Wiring Device-Kellems Cord Grip, Deluxe Form 3 Liquidtight Standard Straight, 1/2 in, Cable Openings: 3/4 to 7/8 in, Jacketed Cable, MNPT, 5-7/8 in Mesh Length, Aluminum, Metallic, -30 to 225 deg F, 1.38 in Dia x 2.05 in L

Application

For hazardous locations, wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors, machine tools, use in wet locations when used with a listed nylon washer between box and fitting

Standards

RoHS Compliant | UL 898D | UL 899D

Features

Helps to prevent cable pull-outs
Controls cable arc of bend
Provides a liquidtight seal
Corrosion resistant stainless steel mesh with aluminum collar
An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
Straight aluminum connector stainless grip
For insulated cables
0.859 to 0.906 in recommended knockout hole
0.64 in Dia throat
Multi-weave grip gives cable arc of bend control minimizing cable damage and extending cable life
Endless weave provides easy cable/flexible conduit installation
Stainless steel strand, aluminum nut and neoprene bushing

Specifications

Cable Openings:	3/4 to 7/8 in
Cable Type:	Jacketed
Color:	Metallic
Connection Type:	MNPT
Country of Origin:	CN
Dimensions:	1.38 in Dia x 2.05 in L
Material:	Aluminum
Mesh Length:	5-7/8 in
Number of Conductors:	1
Temperature Rating:	-30 to 225 deg F
Trade Size:	1/2 in
