Picture of 074093512 HWD
Actual Product May Vary From Image

074093512 HWD

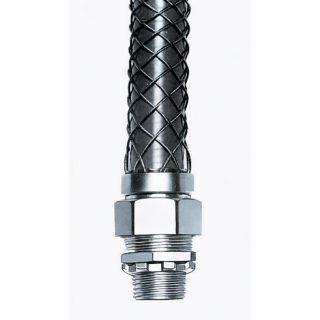

Wiring Device-Kellems Seal-Tite® 074093512 Insulated Liquid Tight Male Straight Conduit Connector With Stainless Steel Mesh, 1/2 in Trade, Steel, Zinc Plated
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: 074093512
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$54.68

Product Details

Brand Name

Wiring Device-Kellems

Type

Insulated Liquid Tight Male Straight

Description

Wiring Device-Kellems Seal-Tite® Conduit Connector, Insulated Liquid Tight Male Straight, 1/2 in, 0.57 in Dia Throat, For Use With: Liquid Tight Conduit, Steel, Metallic, Zinc Plated, 1.5 in L x 1.34 in W

Application

Machine Tools, Motors, Molding Equipment, Transformers, Weaving and Paper Machines, Fans, Lighting, Bakeries, Breweries, Food Processing, Chemical Plants, Dairies, Mines and Hazardous Location Applications

Standards

CSA Certified | Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2 | UL 898D | UL 899D | UL 94 HB/94 V-2 Flammability Rating

Features

  • Easy installation
  • Allows the use of Kellems grips
  • Extends connector and cable life
  • -40 to 225 deg F operating temperature
  • 0.859 to 0.906 in recommended knockout hole
  • Insulated throat
  • Cap nut connection
  • Suitable for use in wet locations when a listed sealing ring is used between box and fitting
  • Mounting between enclosures and conduits
  • Suitable for use in hazardous locations per class 1 Div 2, class II Div 1 and 2, class III Div 1 and 2

Includes

Mesh Grip

Specifications

Color:Metallic
Country of Origin:US
Dimensions:1.34 in W x 1.5 in H
Finish:Zinc Plated
Material:Steel
Suitable For Use With:Liquid Tight Conduit
Throat Size:0.57 in
Trade Size:1/2 in
