074093513 HWD

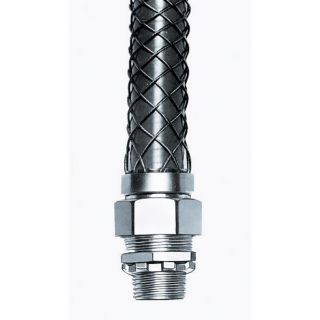

Wiring Device-Kellems 074093513 Insulated Liquid Tight Male Straight Strain Relief Grip With Stainless Steel Mesh and Insulated Throat, 3/4 in Trade, 0.54 to 0.74 in Cable Openings, Steel, Metallic
Manufacturer part number: 074093513
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$64.36

Product Details

Brand Name

Wiring Device-Kellems

Type

Insulated Liquid Tight Male Straight

Description

Kellems® strain relief grips are designed to prevent tension from being transmitted to joints and terminals on electrical cord, cable and conduit. In most applications, a Kellems® grip for strain relief is stronger than the cable itself and gives much greater security than the use of a fitting alone. Kellems® Grips for strain relief help make electrical systems safer and save money by minimizing downtime from costly electrical failure due to cable pull out. Kellems® Grips also aid in compliance with the National Electric Code's terminal tension protection requirements.
Wiring Device-Kellems Strain Relief Grip, Insulated Liquid Tight Male Straight, 3/4 in Trade, Cable Openings: 0.54 to 0.74 in, Steel, Metallic, Metallic, 1.62 in L x 1.55 in H Dimensions

Application

Machine Tools, Motors, Molding Equipment, Transformers, Weaving and Paper Machines, Fans, Lighting, Bakeries, Breweries, Food Processing, Chemical Plants, Dairies, Mines and Hazardous Location Applications

Standards

CSA Certified | Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2 | UL 898D | UL 899D | UL 94 HB/94 V-2 Flammability Rating

Features

  • Endless weave provides easy cable/flexible conduit installation
  • Stainless steel mesh is corrosion resistant
  • Can be used inside or outside, it eliminates cable or flexible conduit pull-out and reduces costly downtime
  • Multi-weave grip gives cable arc-of-bend control minimizing cable damage and extending cable life
  • An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
  • Connects flexible cord or bus drop cable to electrical enclosures
  • Stainless steel mesh
  • 0.78 in Dia throat
  • Suitable for use in wet locations when a listed sealing ring is used between box and fitting

Specifications

Cable Openings:0.54 to 0.74 in
Color:Metallic
Country of Origin:US
Dimensions:1.62 in L x 1.55 in H
Finish:Metallic
Material:Steel
Mounting Type:Surface
Suitable For Use With:PolyTuff® Non-Metallic and Liquidtight Metal Conduit
Throat Size:0.78 in
Trade Size:3/4 in
