074093516 HWD

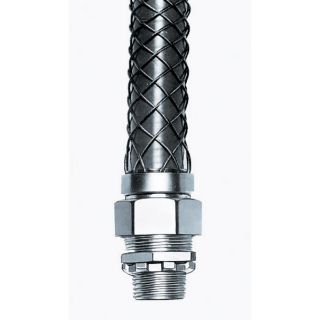

Wiring Device-Kellems S-TITE® 074093516 Insulated Straight Male Metallic Liquidtight Connector, 1-1/2 in Trade, Steel
Manufacturer part number: 074093516
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$140.60

Product Details

Brand Name

Wiring Device-Kellems

Type

Flexible Insulated Straight

Description

Kellems® liquid tight, flexible metal conduit grips are offered with high quality Hubbell® plated steel fittings in a wide variety of NPT sizes and configurations, either insulated or non insulated. The addition of a stainless steel mesh to these fittings makes them stronger than the conduit itself. Kellems® conduit grips helps prevent conduit pull out from the connecting fitting that is subject to stress, pull tension, vibration, motion or strain. They promote safe electrical systems and reduce equipment downtime.
Wiring Device-Kellems S-TITE® Liquidtight Connector, Insulated Straight Male Metallic, 1-1/2 in Trade, 1.53 in Throat, For Use With: PolyTuff® Non-Metallic and Liquidtight Metal Conduit, Surface Mounting, Steel, 2.28 in L x 2.72 in W Dimensions

Application

For hazardous locations and preventing conduit pull-out and damage at the fitting

Standards

CSA Certified | Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2 | UL 898D | UL 899D | UL 94 HB/94 V-2 Flammability Rating

Features

  • Easy installation
  • Allows the use of kellems grips
  • Extends connector and cable life
  • Stainless steel strand
  • Nylon shell construction
  • Zinc plated steel ferrule and locknut
  • Nylon insulator
  • -34 to 107 deg C operating temperature
  • 1.969 to 2.016 in recommended knockout hole
  • Mounts between enclosure and conduit
  • 1.53 in Dia throat
  • Suitable for use in wet locations when a listed sealing ring is used between box and fitting

Includes

Stainless Steel Mesh

Specifications

Cable Openings:6-3/4 in
Color:Metallic
Country of Origin:US
Dimensions:2.28 in L x 2.5 in W
Finish:Zinc Plated
Material:Iron
Mounting Type:Surface
Suitable For Use With:PolyTuff® I Liquid Tight Non-Metallic Conduit and Type B Metallic
Throat Size:1.53 in
Trade Size:1-1/2 in
