Name: 074640 DOD
Brand: Dodge
SKU: 074640 DOD
Availability: OutOfStock

074640 DOD

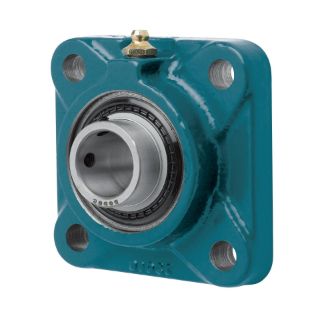

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

074640

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Specifications

Ball Bearing Series:	209 Series
Bearing Type:	Ball
Bolt Diameter:	0.5000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	4.1300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	4.1300
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	1.9400
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Krytox GPL 206
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Flange
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	3000
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	45.0000
Shaft Diameter (Unit):	MILLIMETER
Standoff Housing:	No
Suitable for High Temperature:	Yes
Suitable For Washdown:	No
