Name: 074737 DOD
Brand: Dodge
SKU: 074737 DOD
Availability: OutOfStock

074737 DOD

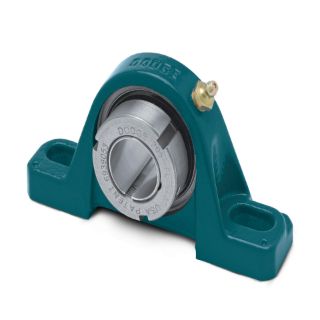

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

074737

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Specifications

Base to Center Height:	1.6900
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt to Bolt (Max):	5.0000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	4.2500
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	1.6100
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	11000
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Adapter Required
Shaft Attachment:	Push-Pull Adapter
Standoff Housing:	No
Suitable for High Temperature:	No
Suitable For Washdown:	No
Take-Up Frame Size:	LD-20,TS-250
