Name: 074936 DOD
Brand: Dodge
SKU: 074936 DOD
Price: 220.21 USD
Availability: OutOfStock

074936 DOD

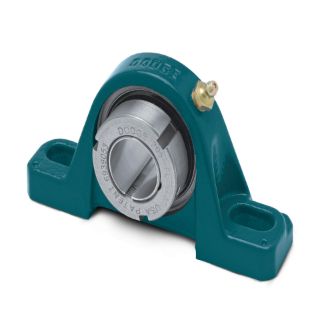

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

074936

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$220.21 / EA

Description

Specifications

Base to Center Height:	2.1300
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt to Bolt (Max):	5.8800
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	5.1800
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	1.8400
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	8000
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Adapter Required
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	1.6250
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Suitable for High Temperature:	No
Suitable For Washdown:	No
Take-Up Frame Size:	LD-20,TS-250
