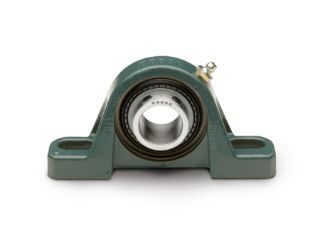

Actual Product May Vary From Image

074971 DOD

Name: 074971 DOD
Brand: Dodge
SKU: 074971 DOD
Price: 95.13 USD
Availability: OutOfStock

P2B-SC-010 MOD

Manufacturer: Dodge

Manufacturer part number: 074971

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$95.13

Qty:

Product Details

Ball Bearing Series:	203 Series
Base to Center Height:	1.0600
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.3750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	3.2500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	3.2500
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	1.0000
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease FM222
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	5000
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	0.6250
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Suitable for High Temperature:	No
Suitable For Washdown:	No
Take-Up Frame Size:	LD-10
