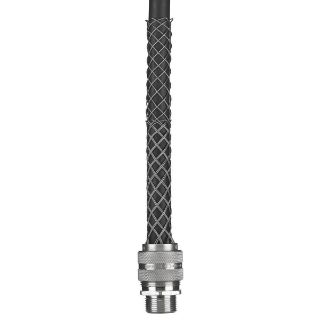

Picture of 074PG29023 HWD
Actual Product May Vary From Image

074PG29023 HWD

Wiring Device-Kellems 074PG29023 Deluxe Form 4 Standard Straight Cord Grip With Stainless Steel Mesh, PG29 Trade, 3/4 to 7/8 in Cable Openings, Aluminum
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: 074PG29023
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$117.56

Product Details

Brand Name

Wiring Device-Kellems

Type

Form 4 Standard

Description

Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.
Wiring Device-Kellems Cord Grip, Deluxe Form 4 Standard Straight, PG29, Cable Openings: 3/4 to 7/8 in, Jacketed Cable, MNPT, Aluminum, Metallic, -30 to 225 deg F

Application

For hazardous locations, wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors, machine tools, use in wet locations when used with a listed nylon washer between box and fitting

Standards

CSA Certified | Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2 | NEC Certified | RoHS Compliant | UL 898D/899D | UL 94 V-2 Flammability Rating | UL 94 HB Flammabilty Rating

Features

  • Helps to prevent cable pull-outs
  • Controls cable arc of bend
  • Provides a liquidtight seal
  • Corrosion resistant stainless steel mesh with aluminum collar
  • An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
  • Straight aluminum connector stainless grip
  • 29 mm threaded hub recommended knockout hole
  • The products are suitable for use in wet locations so long as a listed nylon fitting is used between box and fitting
  • Neoprene bushing is oil and watertight
  • Galvanized steel strand, aluminum nut, neoprene bushing

Specifications

Cable Openings:3/4 to 7/8 in
Cable Type:Jacketed
Color:Metallic
Connection Type:MNPT
Country of Origin:US
Material:Aluminum
Number of Conductors:1
Temperature Rating:-30 to 225 deg F
Trade Size:PG29
