075259 DOD

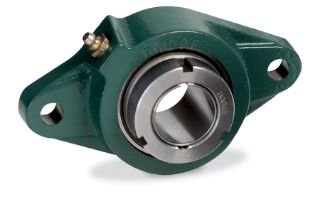

Picture of 075259 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
075259
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$84.81 / EA

Description

Specifications

Ball Bearing Series:203 Series
Bearing Type:Ball
Bolt to Bolt (Max):3.0000
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):3.0000
Bolt to Bolt (Min) (Unit):INCH
Bore Length:1.2900
Bore Length (Unit):INCH
Dynamic Load Capacity:2158
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:No
Grease Name:Unirex N2
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Two-Bolt Flange
Insert Material:Steel
Lubrication:Grease
Maximum Speed:12000
Maximum Speed (Unit):RPM
Seal Type:Single-Lip Contact
Sensor Ready:Adapter Required
Shaft Attachment:Push-Pull Adapter
Standoff Housing:No
Static Load Capacity:1079
Static Load Capacity (Unit):POUND_FORCE
Suitable for High Temperature:No
Suitable For Washdown:No

Resources

BrochureTech BulletinInstallation

Products Specifications

Brand Name
Baldor-Dodge
Flange Type
2 Bolt Flange
Measuring Units
Inch
Shaft Diameter
3/16 in
