075286 DOD

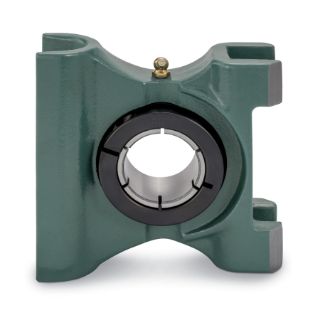

Picture of 075286 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
075286
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Specifications

Ball Bearing Series:211 Series
Bearing Type:Ball
Bore Length:2.2500
Bore Length (Unit):INCH
Dynamic Load Capacity:9755
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:Yes
Grease Name:Unirex N2
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Top-Angle Take-up
Insert Material:Steel
Lubrication:Grease
Maximum Speed:3500
Maximum Speed (Unit):RPM
Seal Type:Single-Lip Contact
Sensor Ready:Adapter Required
Shaft Attachment:Clamp Collar
Shaft Diameter:1.9375
Shaft Diameter (Unit):INCH
Standoff Housing:No
Static Load Capacity:6588
Static Load Capacity (Unit):POUND_FORCE
Suitable for High Temperature:No
Suitable For Washdown:No
Take-Up Frame Size:TP-20

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
Dodge
Shaft Diameter
1 15/16 in
