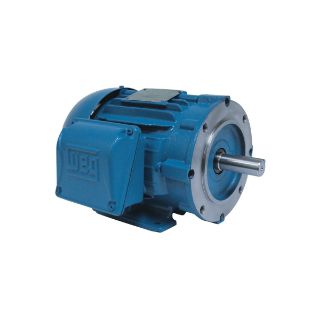

Picture of 07536ET3E365TSC-W22 WEG
Actual Product May Vary From Image

07536ET3E365TSC-W22 WEG

WEG 07536ET3E365TSC-W22 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 75 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 364/5TSC Frame, 3555 rpm Speed, C-Face Footed Mount
Manufacturer: WEG
Manufacturer part number: 07536ET3E365TSC-W22
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$9,533.00

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 113857126
Motion Industries - 04702283

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 75 hp, 208/230/460 VAC, 181 to 164/81.9 A, 60 Hz Frequency, 3 ph ph, 3555 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 364/5TSC Frame, 1-7/8 in Dia x 3-3/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 109 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 32.338 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

  • Regreasable bearings
  • Gasketed conduit box
  • All cast iron construction, including terminal box and fan cover
  • IP55 rating
  • Corrosion proof drains

Specifications

Amperage Rating:181 to 164/81.9 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Constant Torque Speed Range:20:1
Dimensions:32.338 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:364/5TSC
Frequency Rating:60 Hz
Horsepower:75 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:C-Face Footed
Number of Speeds:1
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.25
Shaft Size:1-7/8 in Dia x 3-3/4 in L
Speed:3555 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:109 ft-lb
Variable Torque Speed Range:1000:1
Voltage Rating:208/230/460 VAC
