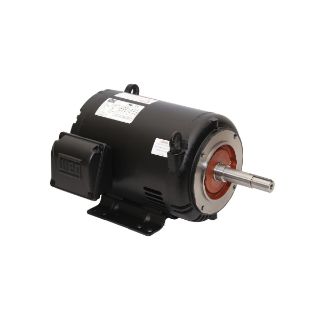

Picture of 07536OT3G364JP WEG
Actual Product May Vary From Image

07536OT3G364JP WEG

WEG 07536OT3G364JP Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 75 hp, 460 VAC, 60 Hz, 3 ph Phase, 364/5JP Frame, 3600 rpm Speed, C-Face Footed Mount
Manufacturer: WEG
Manufacturer part number: 07536OT3G364JP
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Motion Industries - 04868255

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.
WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 75 hp, 460 VAC, 83.4 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Open Drip-Proof Enclosure, 364/5JP Frame, 1-5/8 in Dia x 8-1/8 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, C-Face Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 32.019 in L Dimensions

Features

  • Stainless steel nameplate laser etched with high contrast background
  • Regreasable bearings

Specifications

Amperage Rating:83.4 A
Application Type:Jet Pump (JM/JP) Motors
Bearing Type:Ball
Dimensions:32.019 in L
Enclosure Type:Open Drip-Proof
Frame:364/5JP
Frequency Rating:60 Hz
Horsepower:75 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:C-Face Footed
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.15
Shaft Size:1-5/8 in Dia x 8-1/8 in L
Speed:3600 rpm
Temperature Rating:40 deg C
Variable Torque Speed Range:1000:1
Voltage Rating:460 VAC
