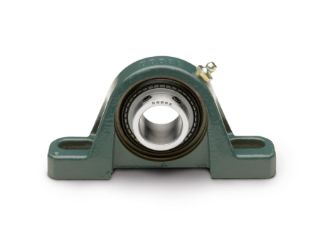

Actual Product May Vary From Image

076139 DOD

Name: 076139 DOD
Brand: Dodge
SKU: 076139 DOD
Price: 1,001.34 USD
Availability: OutOfStock

P2B-SCMED-307

Manufacturer: Dodge

Manufacturer part number: 076139

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,001.34

Qty:

Product Details

Ball Bearing Series:	218 Series
Base to Center Height:	4.0000
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.8750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	11.6200
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	10.3200
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2.5600
Bore Length (Unit):	INCH
Dynamic Load Capacity:	21451
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Mobilith SHC PM 220
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1500
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	3.4375
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Static Load Capacity:	16641
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	No
Take-Up Frame Size:	LD-50
