Home / 076813 DOD

076813 DOD

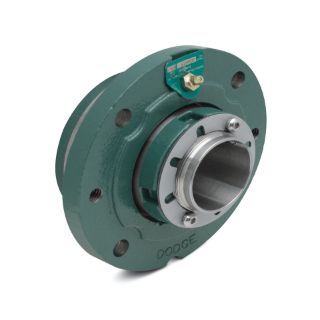

Picture of 076813 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
076813
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,993.70 / EA

Description

Specifications

Bearing Type:Spherical Roller
Bolt Circle:9.3800
Bolt Circle (Unit):INCH
Bolt Diameter:0.7500
Bolt Diameter (Unit):INCH
Bore Length:4.7000
Bore Length (Unit):INCH
Dynamic Load Capacity:83000
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Grease Name:Krytox GPL 207
Housing Construction:Solid
Housing Dimensional Standard:S-2000
Housing Type:Piloted Flange
Insert Material:Steel
Lubrication:Grease
Maximum Speed:2200
Maximum Speed (Unit):RPM
Pilot Depth:1.9100
Pilot Depth (Unit):INCH
Pilot Diameter:8.1250
Pilot Diameter (Unit):INCH
Seal Type:Labyrinth
Sensor Ready:Yes
Shaft Attachment:Push-Pull Adapter
Shaft Diameter:3.9375
Shaft Diameter (Unit):INCH
Static Load Capacity:104000
Static Load Capacity (Unit):POUND_FORCE
Suitable for High Temperature:Yes

Resources

BrochureTech BulletinInstallation
