078158 DOD

Name: 078158 DOD
Brand: Dodge
SKU: 078158 DOD
Price: 2,856.94 USD
Availability: OutOfStock

SP4B-IP-400LE

Manufacturer: Dodge

Manufacturer part number: 078158

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$2,856.94

Qty:

Product Details

Base to Center Height:	4.2500
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.7500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	13.3800
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	10.8800
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.2500
Bolt Width (Unit):	INCH
Bore Length:	4.7000
Bore Length (Unit):	INCH
Dynamic Load Capacity:	83000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Steel

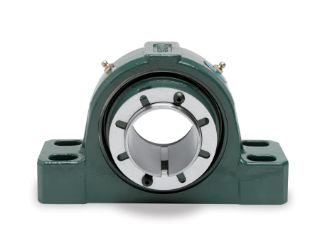

Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2200
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	4.0000
Shaft Diameter (Unit):	INCH
Static Load Capacity:	104000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-350
