Actual Product May Vary From Image

0788473 FAL

Name: 0788473 FAL
Brand: Rexnord
SKU: 0788473 FAL
Price: 286.98 USD
Availability: OutOfStock

Coupling Size: 1080; Coupling Type: Grid; Hub Bore Fit (Hub): Clearance; Hub Straight Bore Diameter (Hub): 2.6875 in; Number of Keyways (Hub): 1; Number of Setscrews (Hub): 1; Hub Style (Hub): Standard; Hub Setscrew Axial Location (Hub): 2.54 in; Hub Leng

Manufacturer: Rexnord

Manufacturer part number: 0788473

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$286.98

Qty:

Product Details

Brand Name

Falk Steelflex®

Description

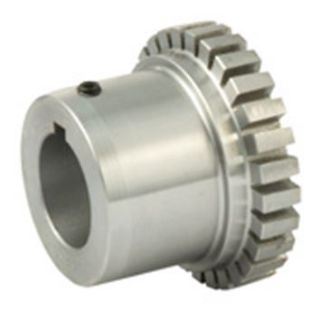

The Steelflex T-Hub design is the common hub used in T10 and T20 close coupled couplings as well as other configurations. Hubs are available in RSB-Rough Stock Bore (usually solid hub) for boring by others, stock bores and custom bores.

Specifications

Coupling Size:	1080
Coupling Type:	Grid
Hub Barrel Outside Diameter Hub:	4.120 in
Hub Bore Fit Hub:	Clearance
Hub Length thru Bore:	3.50 in
Hub Material Hub:	Steel
Hub Setscrew Axial Location Hub:	2.54 in
Hub Straight Bore Diameter Hub Nom:	2.6875 in
Hub Style Hub:	Standard
Hub Type Hub:	T-Hub
Keyway Depth Hub:	0.1875 in
Keyway Fit Hub:	Commercial
Keyway Width Hub:	0.3750 in
Model:	1080T
Number of Keyways Hub:	1
Number of Setscrews Hub:	1
