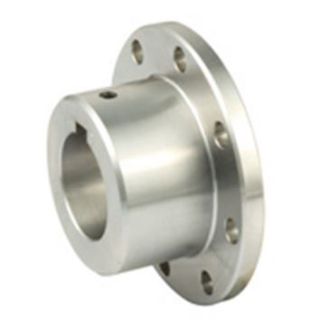

Actual Product May Vary From Image

0788513 FAL

Name: 0788513 FAL
Brand: Rexnord
SKU: 0788513 FAL
Availability: OutOfStock

Coupling Size: 20; Coupling Style: Close Coupled; Coupling Type: Elastomeric; Hub Bore Fit (Hub): Interference; Hub Straight Bore Diameter (Hub): 1.6235 in; Number of Keyways (Hub): 1; Number of Setscrews (Hub): 1; Hub Style (Hub): Standard; Hub Setscrew

Manufacturer: Rexnord

Manufacturer part number: 0788513

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Falk Steelflex®

Description

The Steelflex Hubs are used to mount to the customer shafts for type T10 close connected applications and type R35 half spacer designs.

Specifications

Coupling Size:	20
Coupling Style:	Close Coupled
Coupling Type:	Elastomeric
Hub Barrel Outside Diameter Hub:	3.090 in
Hub Bore Fit Hub:	Interference
Hub Length thru Bore:	2.13 in
Hub Material Hub:	Steel
Hub Setscrew Axial Location Hub:	1.08 in
Hub Shoulder Diameter Hub:	4.450 in
Hub Straight Bore Diameter Hub Nom:	1.6235 in
Hub Style Hub:	Standard
Hub Type Hub:	Shaft
Keyway Depth Hub:	0.1875 in
Keyway Fit Hub:	Commercial
Keyway Width Hub:	0.3750 in
Model:	1040T
Number of Keyways Hub:	1
Number of Setscrews Hub:	1
