Name: 080764 DOD
Brand: Dodge
SKU: 080764 DOD
Availability: OutOfStock

080764 DOD

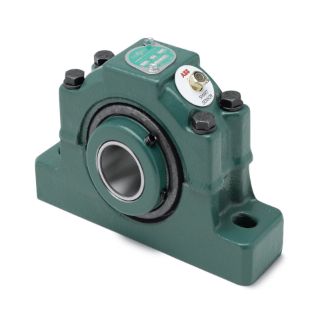

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

080764

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Specifications

Base to Center Height:	3.2500
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	10.2500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	9.2500
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	4.0000
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease HTS #2
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Insert Outer Diameter:	4.8100
Insert Outer Diameter (Unit):	INCH
Lubrication:	Grease
Maximum Speed:	2420
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	2.4375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	54000
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	Yes
Take-Up Frame Size:	HD-250,TS-350
