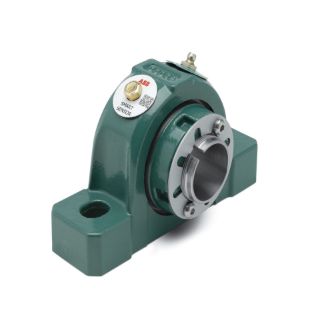

Actual Product May Vary From Image

081178 DOD

Name: 081178 DOD
Brand: Dodge
SKU: 081178 DOD
Availability: OutOfStock

P2B-IP-307L-DRY

Manufacturer: Dodge

Manufacturer part number: 081178

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

Price on Request

Qty:

Product Details

Base to Center Height:	3.7500
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.8750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	10.6300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	9.3800
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	4.1700
Bore Length (Unit):	INCH
Dynamic Load Capacity:	65500
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	None
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	None
Maximum Speed:	2600
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	3.4375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	81500
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-250,TS-400
