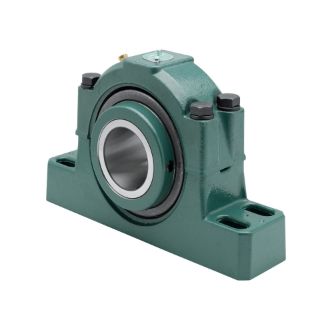

Picture of 081238 DOD

Actual Product May Vary From Image

081238 DOD

P4B-DIAH-207R

Manufacturer: Dodge

Manufacturer part number: 081238

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

Price on Request

Qty:

Product Details

Specifications

Base to Center Height:	3.2500
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.5000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	10.4400
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	9.5600
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	1.7500
Bolt Width (Unit):	INCH
Bore Length:	4.0000
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Insert Outer Diameter:	4.8100
Insert Outer Diameter (Unit):	INCH
Lubrication:	Grease
Maximum Speed:	2420
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	2.4375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	54000
Static Load Capacity (Unit):	POUND_FORCE

Resources

Tech Bulletin Installation
