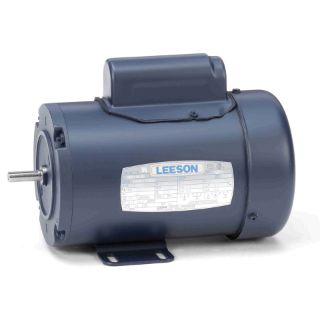

Picture of 092116.00 LEE
Actual Product May Vary From Image

092116.00 LEE

LEESON® 092116.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.17 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 42 Frame, 1725 rpm Speed, Rigid Base Mount
Manufacturer: Leeson Electric
Manufacturer part number: 092116.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$485.35

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 0.17 hp, 115/208 to 230 VAC, 4.2/2.1 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 42 Frame, 0.38 in Dia x 1.12 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 9.94 in L x 8.24 in H Dimensions

Application

Pumps, Conveyors, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:4.2/2.1 A
Application Type:Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:9.94 in L x 8.24 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:42
Frequency Rating:60 Hz
Horsepower:0.17 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Rigid Base
Number of Speeds:1
Phase:1 ph
Rotation:Selective CCW
Service Factor:1.15
Shaft Size:0.38 in Dia x 1.12 in L
Speed:1725 rpm
Temperature Rating:40 deg C
Variable Torque Speed Range:10:1
Voltage Rating:115/208 to 230 VAC
