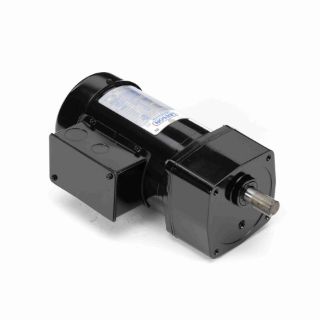

Actual Product May Vary From Image

096068.00 LEE

Name: 096068.00 LEE
Brand: Leeson Electric
SKU: 096068.00 LEE
Price: 789.94 USD
Availability: OutOfStock

LEESON® 096068.00 PE350 Parallel Shaft Continuous Duty Gear Motor, 208 to 230/460 VAC, 0.25 hp, 85 rpm Max, 165 in-lb Torque

Manufacturer: Leeson Electric

Manufacturer part number: 096068.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$789.94

Qty:

Product Details

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: PE350, 208 to 230/460 VAC, 1.2/0.6 A Full Load Amperage, 0.25 hp, 60/50 Hz Frequency, 3 ph, 85 rpm Maximum, 3/4 in Shaft Diameter, 1-5/8 in Shaft Length, Reversible Rotation, 165 in-lb Torque, Permanent Split Capacitor Motor, Ball Bearing, 327 lb Overhung Load, Special Mounting, 40 deg C Ambient, Class F Insulation, Totally Enclosed Fan Cooled Enclosure, Die Cast Aluminum Housing Material, Black Enamel Painted, 13.07 in L x 5.16 in H Dimensions

Standards

AGMA Class 9 | CSA Certified | UL Listed

Features

Designed with the exclusive inverter rated insulation system (IRIS)
Provides superior protection against voltage spikes induced by variable frequency drives
Double shielded motor ball bearings
Needle bearings in the parallel shaft gearboxes

Includes

Steel Conduit Box

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.07 in L x 5.16 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Finish:	Black Enamel Painted
Frequency Rating:	60/50 Hz
Full Load Amperage:	1.2/0.6 A
Horsepower:	0.25 hp
Housing Material:	Die Cast Aluminum
Insulation Type:	Class F
Maximum Speed:	85 rpm
Motor Type:	Permanent Split Capacitor
Mounting Type:	Special
Overhung Load:	327 lb
Phase:	3
Rotation Type:	Reversible
Series:	PE350
Shaft Diameter:	3/4 in
Shaft Length:	1-5/8 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	165 in-lb
Voltage Rating:	208 to 230/460 VAC
