098006.00 LEE

Name: 098006.00 LEE
Brand: Leeson Electric
SKU: 098006.00 LEE
Price: 659.54 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

098006.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$659.54 / EA

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Alternate Supplier #

Grainger - 48ZG61

Description

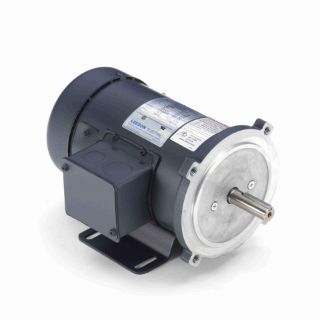

LEESON® DC Motor, 2-Pole Continuous Duty, 0.37 kW Power, 90 VDC, 5 A, 2500 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, SS56C Frame, 0.625 in Dia x 2.06 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 12.6 in-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10.81 in L x 6.32 in H Dimensions

Application

Pumps, Conveyors, Turntables, Textile Machinery, Treadmills, Reeling Equipment, Sports Equipment and Medical Equipment

Standards

CSA Certified | UL Listed

Features

Compatible with PWM or SCR type controllers

Specifications

Amperage Rating:	5 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	10.81 in L x 6.32 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	SS56C
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Power Rating:	0.37 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.625 in Dia x 2.06 in L
Speed:	2500 rpm
Temperature Rating:	40 deg C
Torque Rating:	12.6 in-lb
Voltage Rating:	90 VDC
