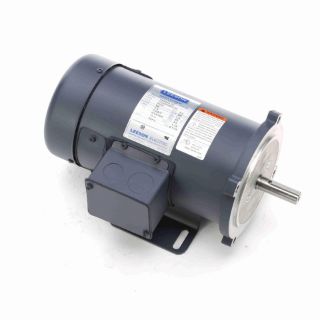

Actual Product May Vary From Image

098009.00 LEE

Name: 098009.00 LEE
Brand: Leeson Electric
SKU: 098009.00 LEE
Price: 804.09 USD
Availability: OutOfStock

LEESON® 098009.00 2-Pole Continuous Duty DC Motor, 18.9 in-lb Torque, 0.56 kW Power Rating, 90 VDC, 7.6 A, NSS56C Frame, 2500 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 098009.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$804.09

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® DC Motor, 2-Pole Continuous Duty, 0.56 kW Power, 90 VDC, 7.6 A, 2500 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, NSS56C Frame, 0.625 in Dia x 2.06 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 18.9 in-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 11.81 in L x 6.32 in H Dimensions

Application

Pumps, Conveyors, Turntables, Textile Machinery, Treadmills, Reeling Equipment, Sports Equipment and Medical Equipment

Standards

CSA Certified | UL Listed

Features

Brush holder design provides easy access to brushes
Large oversized brushes assure long brush life
Capable of dynamic braking
PWM or SCR type controller rated
High starting torque
Permanently lubricated sealed ball bearings
Higher hp and speed achievable using PWM type DC controls
Dynamically balanced armatures
30:1 constant torque operation

Specifications

Amperage Rating:	7.6 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.81 in L x 6.32 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	NSS56C
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Power Rating:	0.56 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.625 in Dia x 2.06 in L
Speed:	2500 rpm
Temperature Rating:	40 deg C
Torque Rating:	18.9 in-lb
Voltage Rating:	90 VDC
