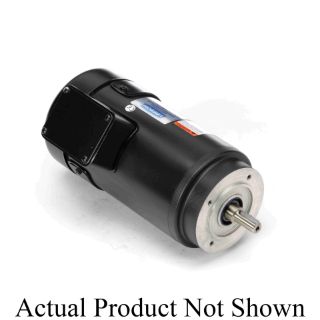

Actual Product May Vary From Image

098014.00 LEE

Name: 098014.00 LEE
Brand: Leeson Electric
SKU: 098014.00 LEE
Price: 698.56 USD
Availability: OutOfStock

LEESON® 098014.00 4-Pole Continuous Duty DC Motor, 11.7 in-lb Torque, 0.37 kW Power Rating, 180 VDC, 2.4 A, 71 Frame, 1800 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 098014.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$698.56

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® DC Motor, 4-Pole Continuous Duty, IEC Metric Motors Special Features, 0.37 kW Power, 180 VDC, 2.4 A, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 71 Frame, 0.562 in Dia x 1.65 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 11.7 in-lb Torque, Round Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 11.28 in L x 5.04 in W x 7.08 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	2.4 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.28 in L x 5.04 in W x 7.08 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	71
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round
Number of Speeds:	1
Power Rating:	0.37 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.562 in Dia x 1.65 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Torque Rating:	11.7 in-lb
Voltage Rating:	180 VDC
