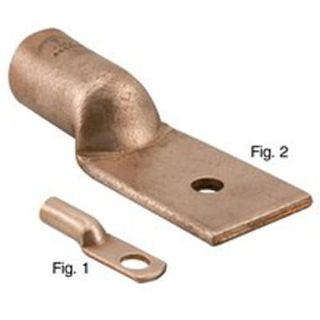

Actual Product May Vary From Image

1-1/8 ILS

Name: 1-1/8 ILS
Brand: Ilsco
SKU: 1-1/8 ILS
Availability: OutOfStock

ILSCO® ClearChoice® 1-1/8 1-Hole Solder Lug Connector, 600 kcmil Copper Conductor, 3/8 in Stud, Copper

Manufacturer: Ilsco

Manufacturer part number: 1-1/8

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

ILSCO®

Type

1-Hole

Description

ILSCO® ClearChoice® Solder Lug Connector, 1-Hole, Copper Conductor, 600 kcmil Conductor, 600 VAC, 3/8 in Stud, 1-5/8 in W x 1/4 in THK Tongue, 4-7/16 in Overall Length, 1-1/8 in Dia x 1-1/2 in L Barrel, 450 A, 1 in Mounting Hole Spacing, 90 deg C, 0.406 in Dia Mounting Hole, Copper, 4-7/16 in L x 1-5/8 in W

Application

Terminating Connector

Standards

UL 486A/B File No. E6207 | CSA File No. LR29601

Features

Manufactured from high strength copper tubing
Seamless construction
Clearly marked with wire size
If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
Won't leak solder
Provides maximum conductivity
For copper conductor only

Specifications

Barrel Size:	1-1/8 in Dia x 1-1/2 in L
Conductor Size:	600 kcmil
Conductor Type:	Copper
Country of Origin:	US
Dimensions:	4-7/16 in L x 1-5/8 in W
Material:	Copper
Mounting Hole Size:	0.406 in Dia
Overall Length:	4-7/16 in
Specifications:	450 A, 1 in Mounting Hole Spacing
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1-5/8 in W x 1/4 in THK
Voltage Rating:	600 VAC
