1-3/4 ILS

Name: 1-3/4 ILS
Brand: Ilsco Corporation
SKU: 1-3/4 ILS
Availability: OutOfStock

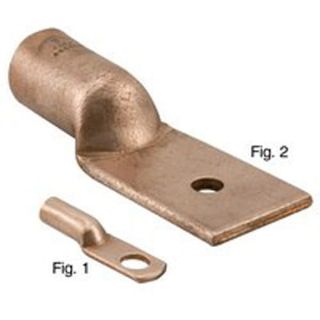

Actual Product May Vary From Image

Product Details

Manufacturer:

Ilsco Corporation

Manufacturer part number:

1-3/4

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

ILSCO®

Type

1-Hole

Description

ILSCO® ClearChoice® Solder Lug Connector, 1-Hole, Copper Conductor, 1500 kcmil Conductor, 600 VAC, 1 in Stud, 0.25 in W x 0.05 in THK Tongue, 5/8 in Overall Length, 0.188 in Dia x 0.344 in L Barrel, 850 A, 0.188 in Mounting Hole Spacing, 90 deg C, 0.172 in Dia Mounting Hole, Copper, 6-5/8 in L x 2-5/8 in W

Application

Terminating Connector

Standards

UL 486A/B File No. E6207 | CSA File No. LR29601

Features

Manufactured from high strength copper tubing
Seamless construction
Clearly marked with wire size
If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
Won't leak solder
Provides maximum conductivity
For copper conductor only

Specifications

Barrel Size:	0.188 in Dia x 0.344 in L
Conductor Size:	1500 kcmil
Conductor Type:	Copper
Country of Origin:	US
Dimensions:	6-5/8 in L x 2-5/8 in W
Material:	Copper
Mounting Hole Size:	0.172 in Dia
Overall Length:	5/8 in
Specifications:	850 A, 0.188 in Mounting Hole Spacing
Stud Size:	1 in
Temperature Rating:	90 deg C
Tongue Size:	0.25 in W x 0.05 in THK
Voltage Rating:	600 VAC
