100-5 O/L MOR

Name: 100-5 O/L MOR
Brand: Regal Rexnord
SKU: 100-5 O/L MOR
Availability: OutOfStock

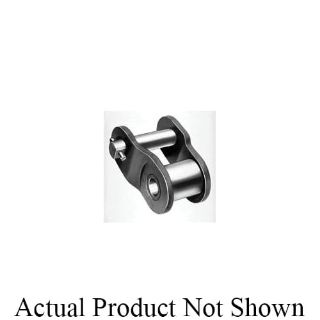

Morse® 156145 Standard Duty Offset Link With Cotter Pin, 100 Chain, 1-1/4 in Pitch, 7.187 in OAW, 3/8 in Dia Pin, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 156145

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Standard Duty

Description

Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.

Morse® Offset Link, Standard Duty, 100 Chain, 1-1/4 in Pitch, 7.187 in Overall Width, 3/8 in Pin Dia, 1.166 in Link Plate Height, 0.156 in Link Plate Thickness, Steel

Application

Oil Industry Machinery, Paper Industry Machinery, Rubber, Plastic Industry Equipment and Textile Industries

Standards

ANSI B29.1

Features

5-strands

Specifications

Chain Size:	100
Country of Origin:	CN
Link Plate Height:	1.166 in
Link Plate Thickness:	0.156 in
Material:	Steel
Overall Width:	7.187 in
Pin Diameter:	3/8 in
Pitch:	1-1/4 in
