100-5C 10FT MOR

Name: 100-5C 10FT MOR
Brand: Regal Rexnord
SKU: 100-5C 10FT MOR
Availability: OutOfStock

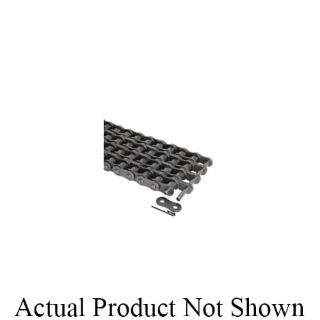

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

327761

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Morse®

Type

Cottered Standard Duty

Description

Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.

Morse® Roller Chain, Cottered Standard Duty, 1-1/4 in Pitch, 3/8 in Pin Diameter, 7.187 in Pin Length, 3/4 in Roller Diameter, 3/4 in Roller Width, 1.166 in Plate Height, 0.156 in Plate Thickness, 1 Links, 5 Strands, 120000 lb Tensile Strength, 10 ft Overall Length, Steel

Application

Aggregate, Cement, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI B29.1

Features

Created for applications requiring high horsepower at low speeds
Far exceeds ANSI performance standard
Rigid manufacturing processes result in a fully-featured chain
Unmatched quality and performance

Specifications

Country of Origin:	CN
Material:	Steel
Number of Links:	1
Number of Strands:	5
Overall Length:	10 ft
Pin Diameter:	3/8 in
Pin Length:	7.187 in
Pitch:	1-1/4 in
Plate Height:	1.166 in
Plate Thickness:	0.156 in
Roller Diameter:	3/4 in
Roller Width:	3/4 in
Tensile Strength:	120000 lb
