1000-5MGT-25 GAT

Name: 1000-5MGT-25 GAT
Brand: Gates
SKU: 1000-5MGT-25 GAT
Price: 70.56 USD
Availability: OutOfStock

PowerGrip™ GT3

Manufacturer: Gates

Manufacturer part number: 1000-5MGT-25

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$70.56

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

94008200

Description

PowerGrip™ GT3 belts are made of a highly advanced combination of materials designed to reduce both initial and operating costs. The entire PowerGrip GT3 belt range is suited both for new drive designs as well as for performance upgrades on existing drives. The 2MGT, 3MGT and 5MGT pitches are ideal for compact drives on hand tools, business machines, domestic appliances and high precision servomotor drives.

Features

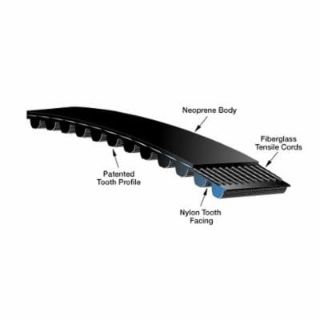

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation. Neoprene body provides protection against grime, grease, oil and moisture. Nylon tooth facing provides a durable wear surface for long service life. Maintenance-free, clean solution for roller chain drive conversion with no lubrication or retensioning required.

Specifications

Belt Back Side:	Smooth
Belt Height (in):	0.15
Belt Height (mm):	3.81
Belt/Slab:	Belt
Color:	Black
Cord Material:	Fiberglass
Country of Origin:	US
End:	Endless
Fabric Material:	Nylon Teeth
GC Base Product:	PowerGrip® GT®3 Belts - 5mm Pitch
Harmonized Tariff Code:	4010.35.4500
Length Pitch (in):	39.37
Length Pitch (mm):	1000
Material:	Polychloroprene (Neoprene)
Max Temp (°C):	+100
Max Temp (°F):	+212
Min Temp (°C):	-30
Min Temp (°F):	-22
Number of Teeth:	200
Pitch (in):	0.197
Pitch (mm):	5
Proposition 65:	NO
Section:	5M
Sided:	Single Sided
Sprock Comptab:	PowerGrip GT
Standard Width:	YES
Stat Conductive:	No
Tooth Form:	GT Design
Tooth Height (in):	0.076
Tooth Height (mm):	1.93
Width (in):	0.984
Width (mm):	25
