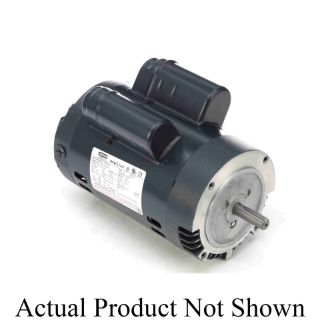

Picture of 100026.00 LEE
Actual Product May Vary From Image

100026.00 LEE

LEESON® 100026.00 4-Pole Continuous Duty AC Motor, DP Enclosure, 0.75 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, S56C Frame, 1725 rpm Speed, Round/C-Face/Footless Mount
Manufacturer: Leeson Electric
Manufacturer part number: 100026.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 0.75 hp, 115/208 to 230 VAC, 10.8/5.3 to 5.4 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, DP Enclosure, S56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.25 Service Factor, Ball Bearing, 36 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 5.62 in Dia x 10.99 in L x 7.6 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:10.8/5.3 to 5.4 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Country of Origin:MX
Dimensions:5.62 in Dia x 10.99 in L x 7.6 in H
Enclosure Type:DP
Frame:S56C
Frequency Rating:60 Hz
Horsepower:0.75 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Round/C-Face/Footless
Number of Speeds:1
Phase:1 ph
Rotation:Selective CCW
Service Factor:1.25
Shaft Size:0.63 in Dia x 1.88 in L
Speed:1725 rpm
Temperature Rating:40 deg C
Torque Rating:36 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:115/208 to 230 VAC
