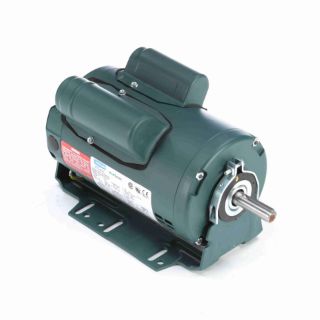

Actual Product May Vary From Image

100050.00 LEE

Name: 100050.00 LEE
Brand: Leeson Electric
SKU: 100050.00 LEE
Availability: OutOfStock

LEESON® 100050.00 4-Pole Continuous Duty AC Motor, DP Enclosure, 0.75 hp, 230/460 VAC, 60 Hz, 3 ph Phase, S56C Frame, 1725 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 100050.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 0.75 hp, 230/460 VAC, 2.8/1.4 A, 60 Hz Frequency, 3 ph ph, 1725 rpm Speed, 1 Speed, DP Enclosure, S56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 55.76 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 5.62 in Dia x 10.49 in L Dimensions

Application

Pumps, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Standard, epact and premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
Squirrel cage induction run

Specifications

Amperage Rating:	2.8/1.4 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	5.62 in Dia x 10.49 in L
Enclosure Type:	DP
Frame:	S56C
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	55.76 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
