10020 3 7/16 MSG

Name: 10020 3 7/16 MSG
Brand: Martin Sprocket & Gear
SKU: 10020 3 7/16 MSG
Price: 581.76 USD
Availability: OutOfStock

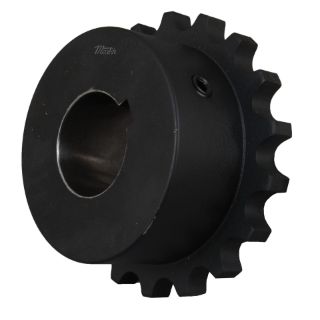

Martin 10020 3 7/16 Bored-to-Size Roller Chain Sprocket Coupling Hub, #100 Chain, 3-7/16 to 4-5/8 in Dia Bore, 20 Teeth, 8.26 in OD, 6.7188 in Dia Hub, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 10020 3 7/16

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$581.76

Qty:

Product Details

Brand Name

Martin

Type

Bored-to-Size

Description

Martin Roller Chain Sprocket Coupling Hub, Bored-to-Size, #100 Chain Number, 3-7/16 to 4-5/8 in Bore, 20 Teeth, 8.26 in OD, 6.7188 in Diameter Hub, 7/8 x 7/16 in Keyway, 1800 rpm Maximum, 3-1/8 in Length Through Bore, 3/4-10 x 3/4 in Screw, Steel

Features

Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	3-7/16 to 4-5/8 in
Chain Number:	#100
Country of Origin:	US
Hub Diameter:	6.7188 in
Keyway Size:	7/8 x 7/16 in
Length Through Bore:	3-1/8 in
Material:	Steel
Maximum Speed:	1800 rpm
Number of Teeth:	20
Outside Diameter:	8.26 in
Screw Size:	3/4-10 x 3/4 in
